Products
-
barrels insert into bag packaging line

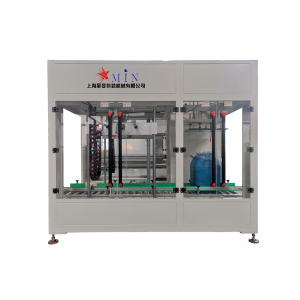

bag insert into barrels
we can do customized
A good solution for batch storage of chemicals, food, daily necessities, paints, etc.
Liquids, pastes, solids, powders, and lumps can all be packaged.
Explosion-proof, leak-proof, vacuum-sealed, and sealed options are available.
-

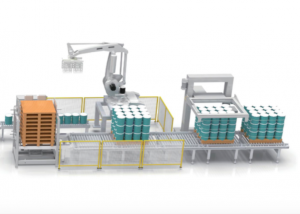

Chemical barrel packaging line
10-20L automatic packaging line (single line direct connection)
- step 1 Manual barrel stacking (barrel stacking elevator)
- step 2 automatic vertical barrel separator
- step 3 automatic barrel printing and labeling machine
- step 4 automatic weighing filling machine
- step 5 automatic cap feeding and capping machine
- step 6 online checkweighing and rejection
- step 7 drum positioning, automatic stacking machine
- step 8 robot palletizing unit
- step 9 automatic horizontal strapping machine
-

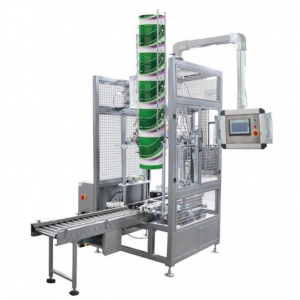

fully automatic barrels divider machine
Fully automatic divider barrels machine
The stacked barrels are divided and feeds to the filling line at one time according to filling needs.
Adavantage- vertical bucket divider small, greatly saves space.
- Divider from bottom bucket ,so accurate and fast.
- it comes with a double lift handle device to avoid hanging buckets efficiency.
Parameter
Product itemtechnical parameterDimensions (L*W*H) mm
2000*1300*2700
bucket speed10-18 barrels/min
Applicable Specifications
18-25L wide mouth drumBucket success rate
≥99.7%mains power220V/50Hz;1.5KWAir pressure0.6MPa -
TD-01 bag inserter machine
I.Matches the carton erector machine structure.
The bag inserter method can be divided into multiple II.functions such as upper sealing and bottom sealing. Its function will not be affected by external factors such as moisture or recycled cartons, and the carton can be loaded correctly.
III.It can be matched with different peripheral equipment and suitable for various packaging methods.
IIII.Simple to operate and easy to adjust.
-
Large non-woven fabric paper roll packaging line 副本
Full automatic Fabric/non-woven fabric/coil／rolls packaging machine line
Function:
- Turnover machine
- wrapping machine
- conveyor line
- Crane Weight scale
- Optional lifting machine
-
Automatic box/carton/case Opening erector machine
Non-limit on the Case Dimension
Machine can be modified for a variety of case dimensions.High Speed
Increases speed to maximum of cases per minute.Stainless Steel Frame or Components
Automatically vertical and bottom seal with tape.
Widely used in various industries and abroad, such as food, medicine, toys, tobacco, daily chemicals, and electronics.
-
Large non-woven fabric paper roll packaging line
Full automatic Fabric/non-woven fabric/coil／rolls packaging machine line
Function:
- Turnover machine
- wrapping machine
- conveyor line
- Crane Weight scale
- Optional lifting machine
-
Coconut/grapefruit/ball Full auto wrapping shrinking machine for round rolling products packaging machine line
Round film wrap shrinking packaging line
- High speed 20-80pcs/min ,Accept customization
- Automatic positioning, precise cutting, film saving
- Film material:PP /PE/POF/PVC
- PLC control,Unmanned operation
-
Chemical powder/solid/paste/liquid barrel/drum sealed packaging machine
Automatically makes and inserts poly bags film into drums/ barrel
- Unmanned operation, safe and cost-effective;
- Fast speed;
- Reduce air contact, safe and pollution-free;
- Fully automatic filling, bag insertion, barrel sealed packaging
-
Bag inserter carton/box/Turnover box/wooden box vacuum sealer machine
bags into boxes, crates or trays，cardboard boxes, tins, pails,pallet boxes, bins, octabins, wooden crates, wire mesh cages, Goodpack containers, etc
- Minimize your bag cost and benefit from the most hygienic & convenient packaging.
- Unmanned operation, safe and pollution-free
- Matching filling machine, vacuum sealing machine, box sealing machine, Maduo packaging line
- Direct canning of products – bagging to reduce dust, protect products, and protect the environment
- 24-hour packaging without stopping production line
-
Film wrap packaging machine for factory products wrap
1. Multi functional, multi scene use, no membrane picking
2. Set up m type/flat/slope pallets for convenient forklift, pallet, and pallet packaging.
3 pre stretched film winding machine, saving film.
4 The speed can be adjusted.
5 customizable top pressing, suitable for various weight products. -
Customized film stretch wrap machine for whole packaging line
1. Multifunctional rotating stretch film packaging
2 whole packaging production line/ independently packaging as you need
3 High speed, PLC controlled
4. Customized weighing, labeling and other functions
5 Friendly for higher/heavier/larger goods.
If you are interested, you can message me on email/WhatsApp .we will provide you with first-class technical support, quality control, and after-sales service.
